ELLN | Electric Lanuncher

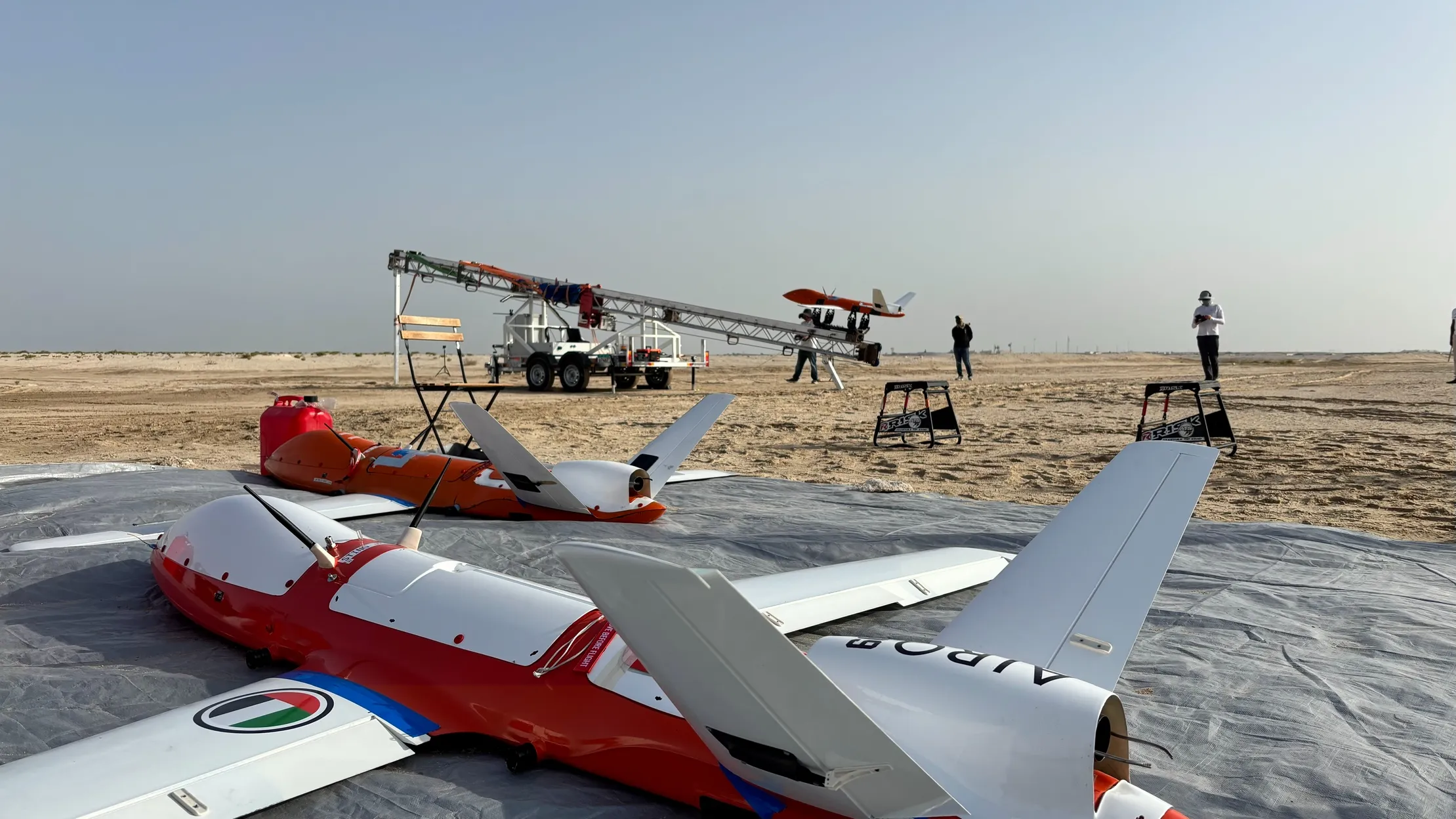

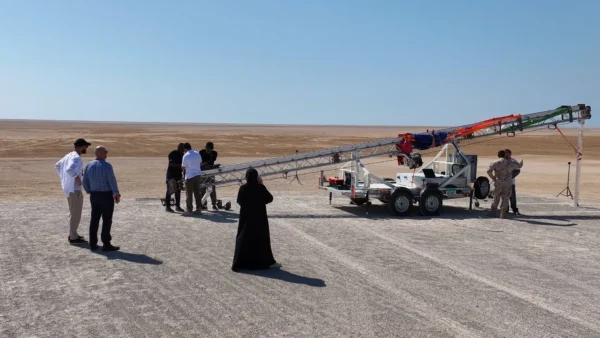

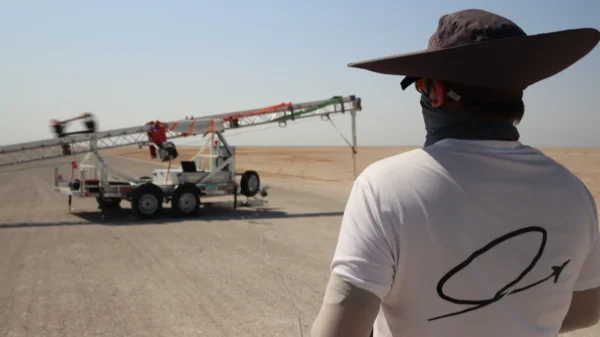

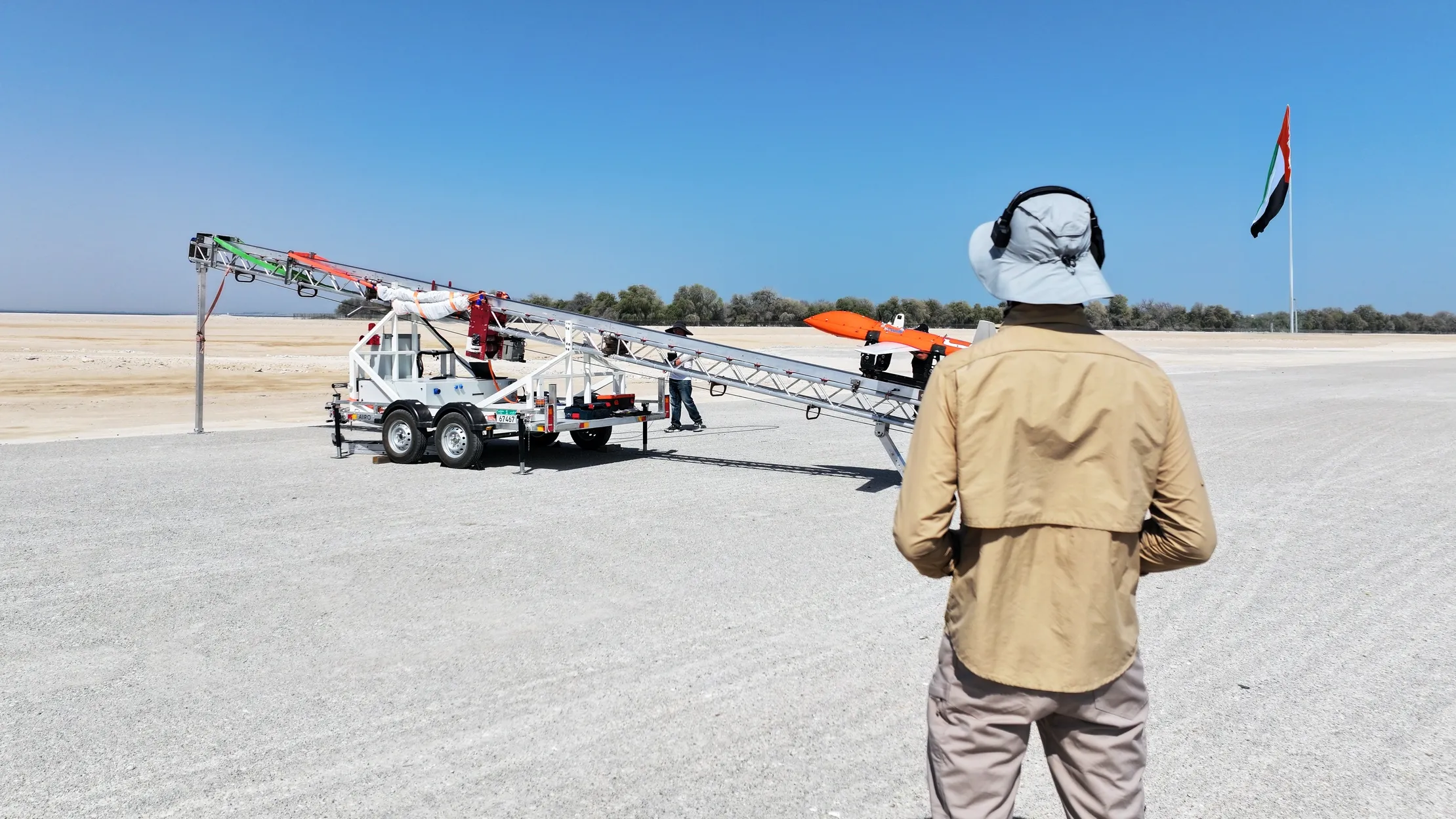

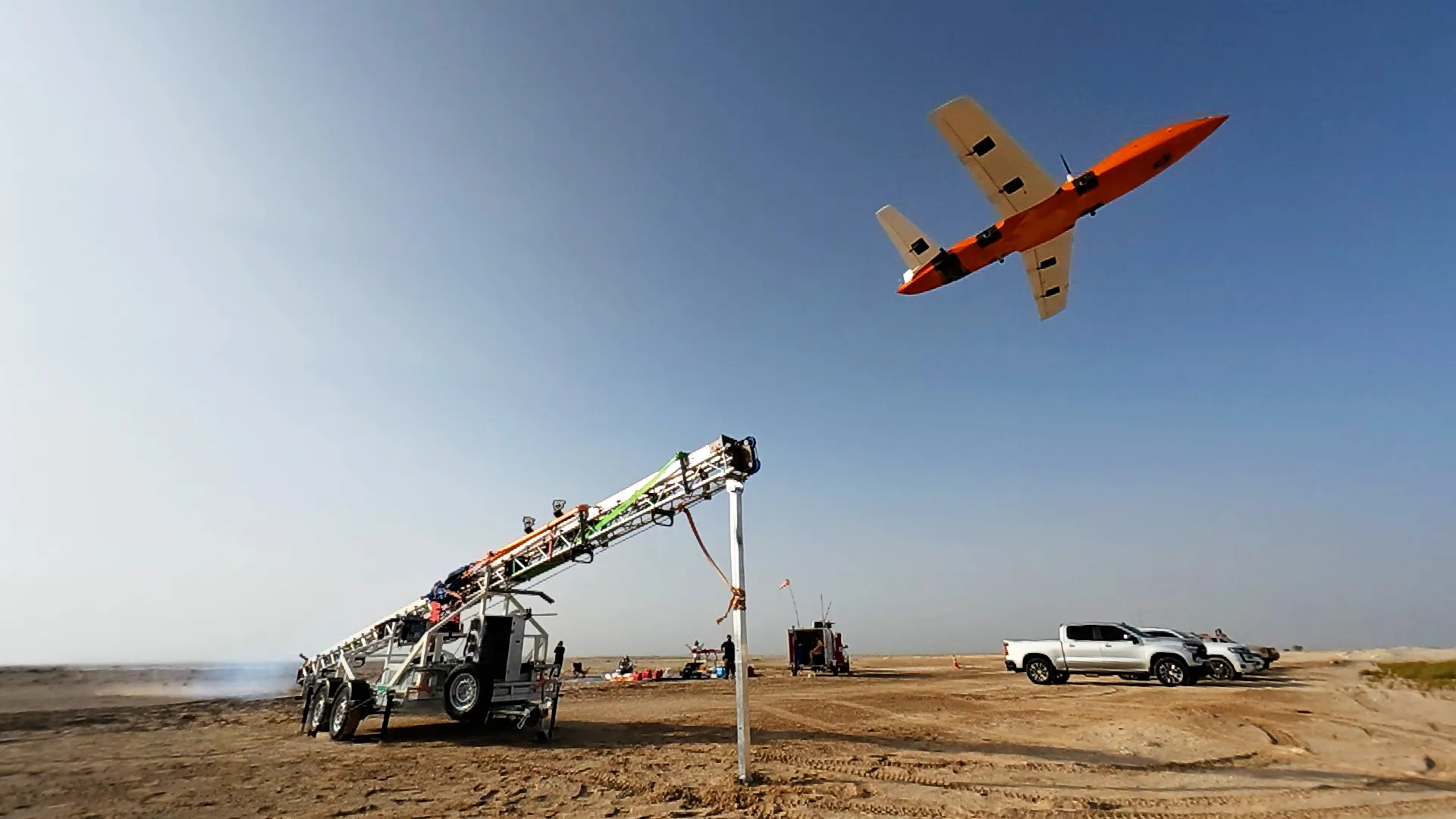

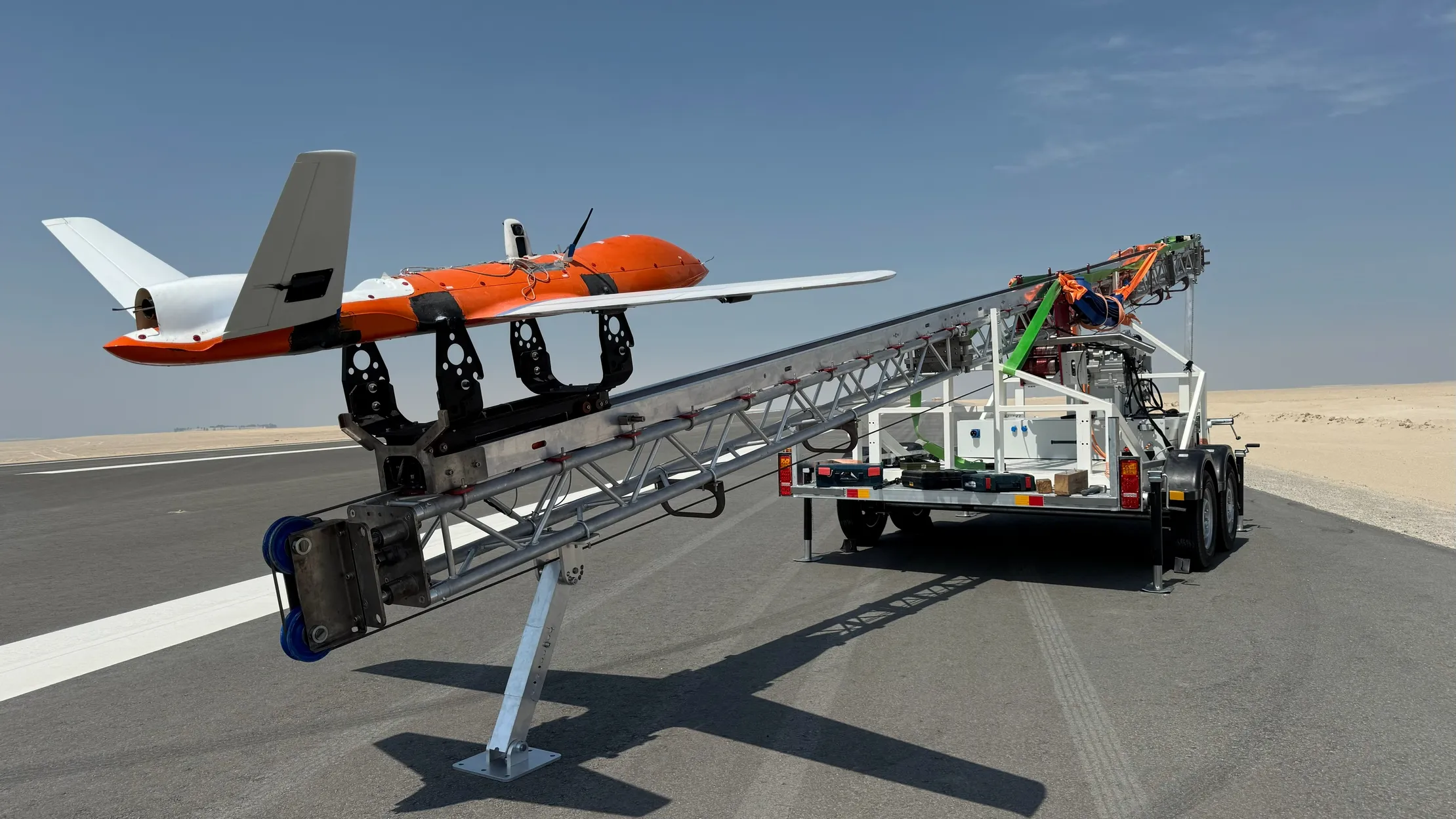

ELLN Electric Launcher is the world’s first fully electric UAV launcher — and the first drone launcher developed entirely in the UAE.

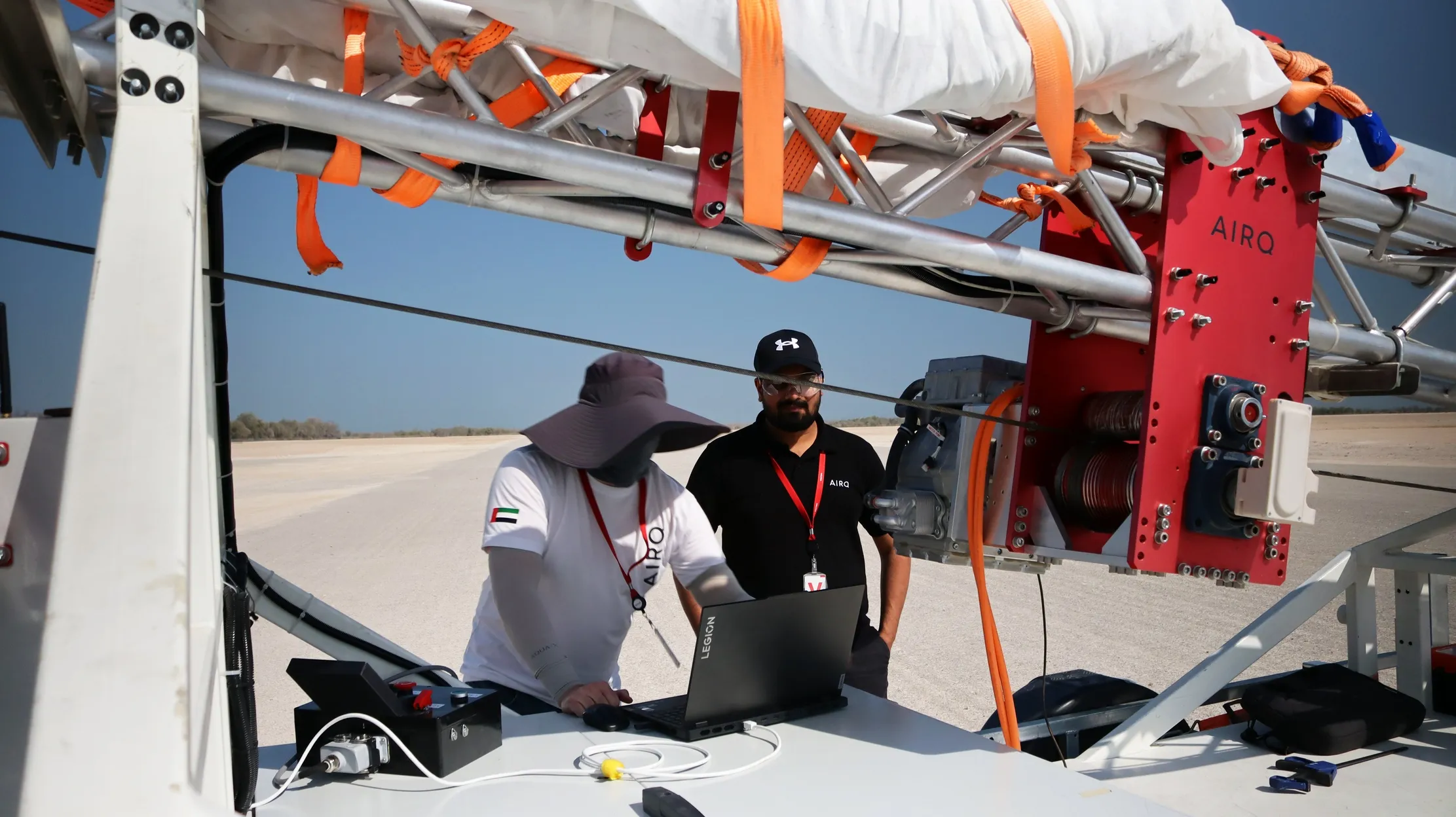

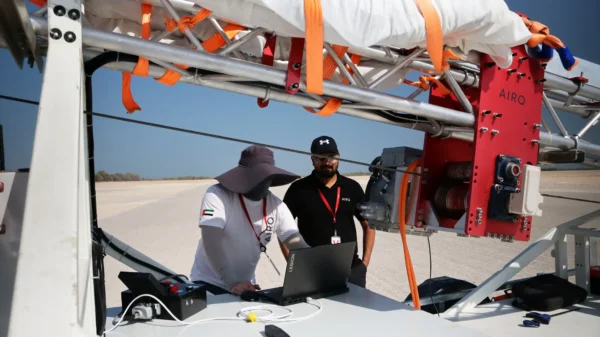

Its scalable design adapts to any client’s needs, with launch parameters customizable through an intuitive, user- friendly computer interface (GUI).

SYSTEM
SPECIFICATIONS:

  • Powertrain | 225 kW electrical motor

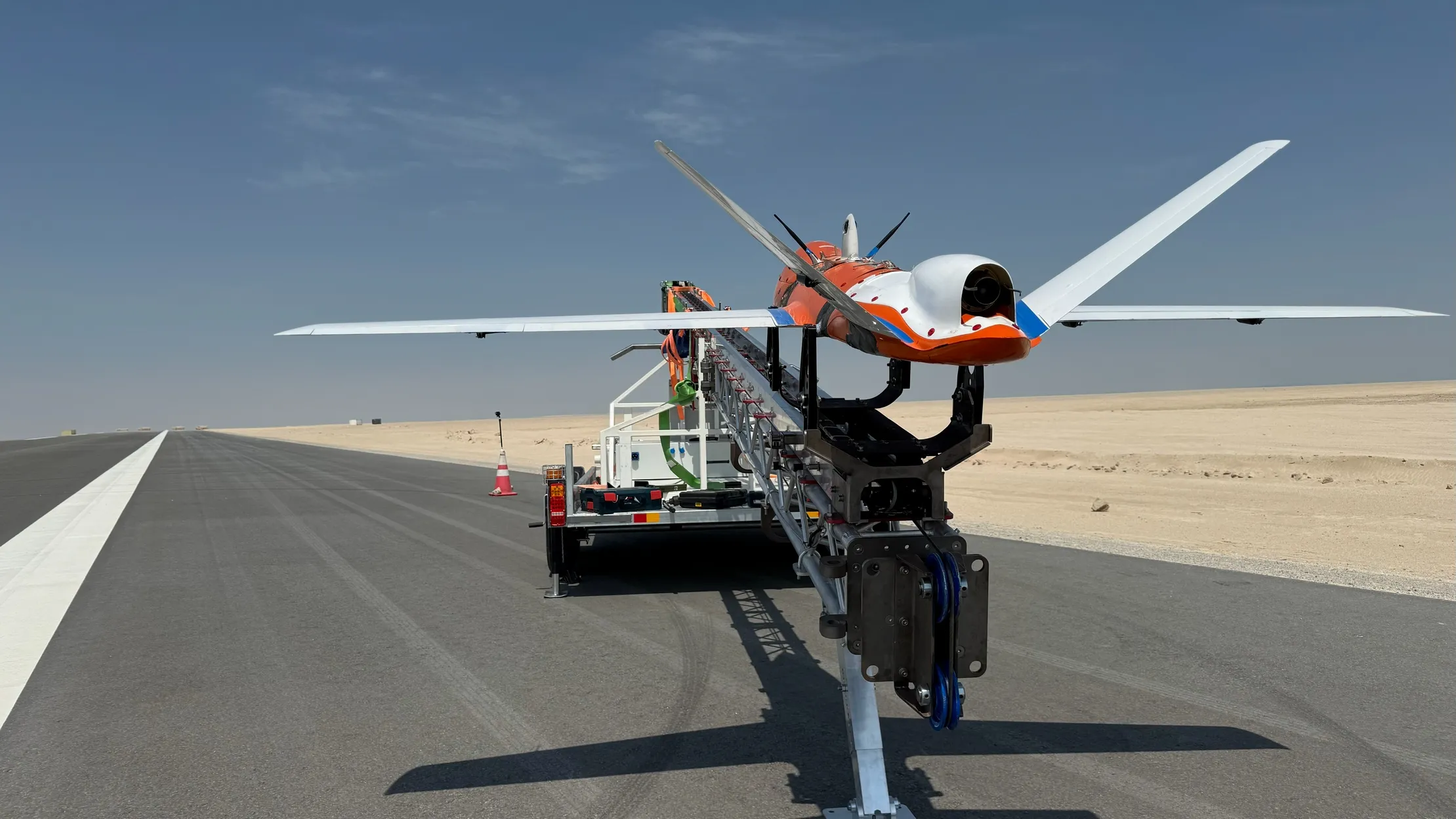

  • Max UAV mass | 10 to 60 kg
  • Max exit speed | Adjustable 35 m/s @ 60kg UAV

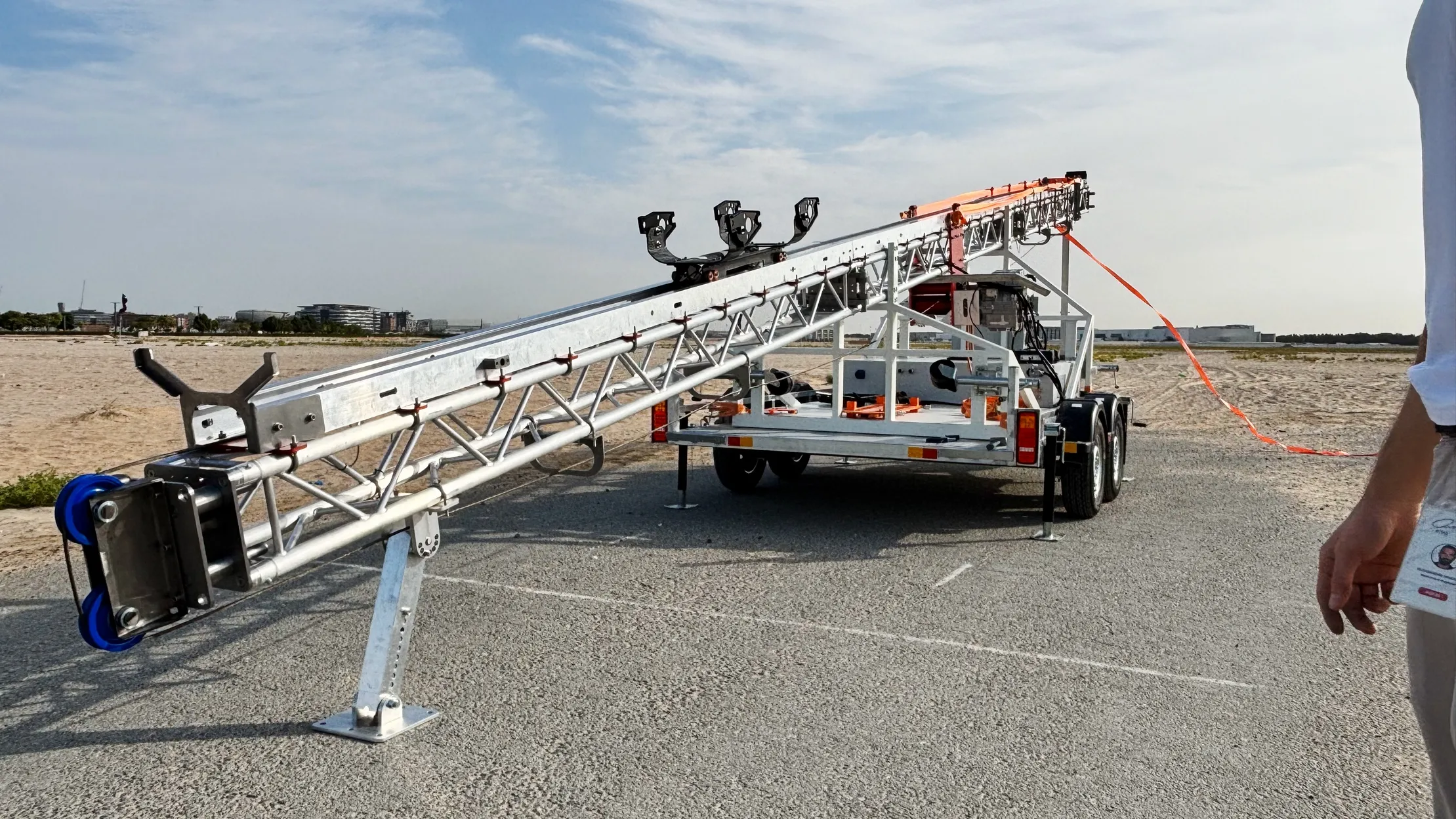

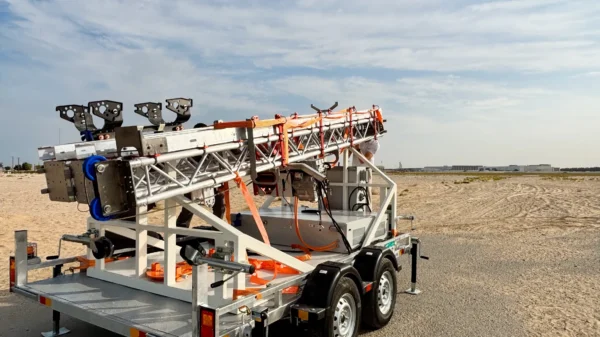

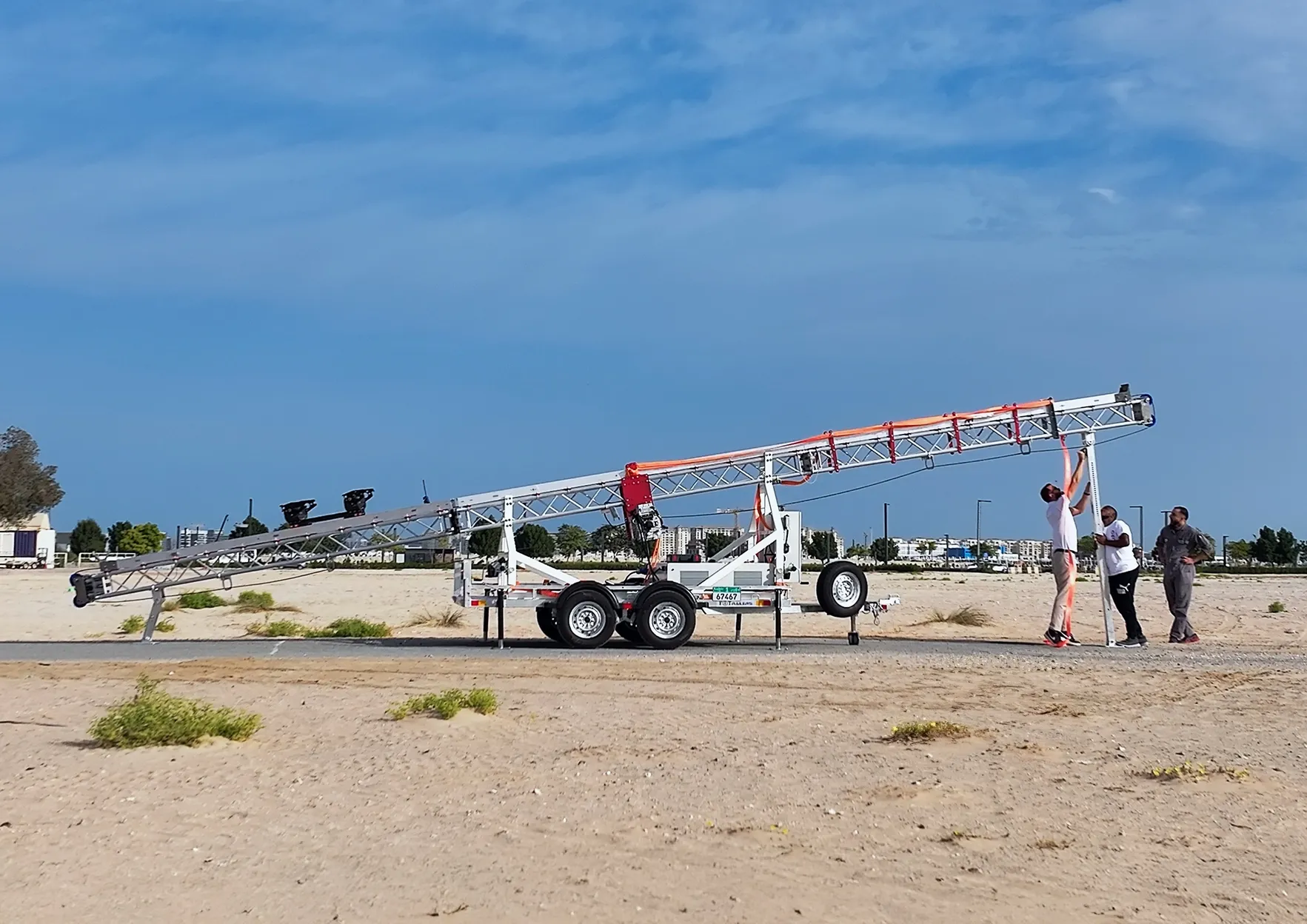

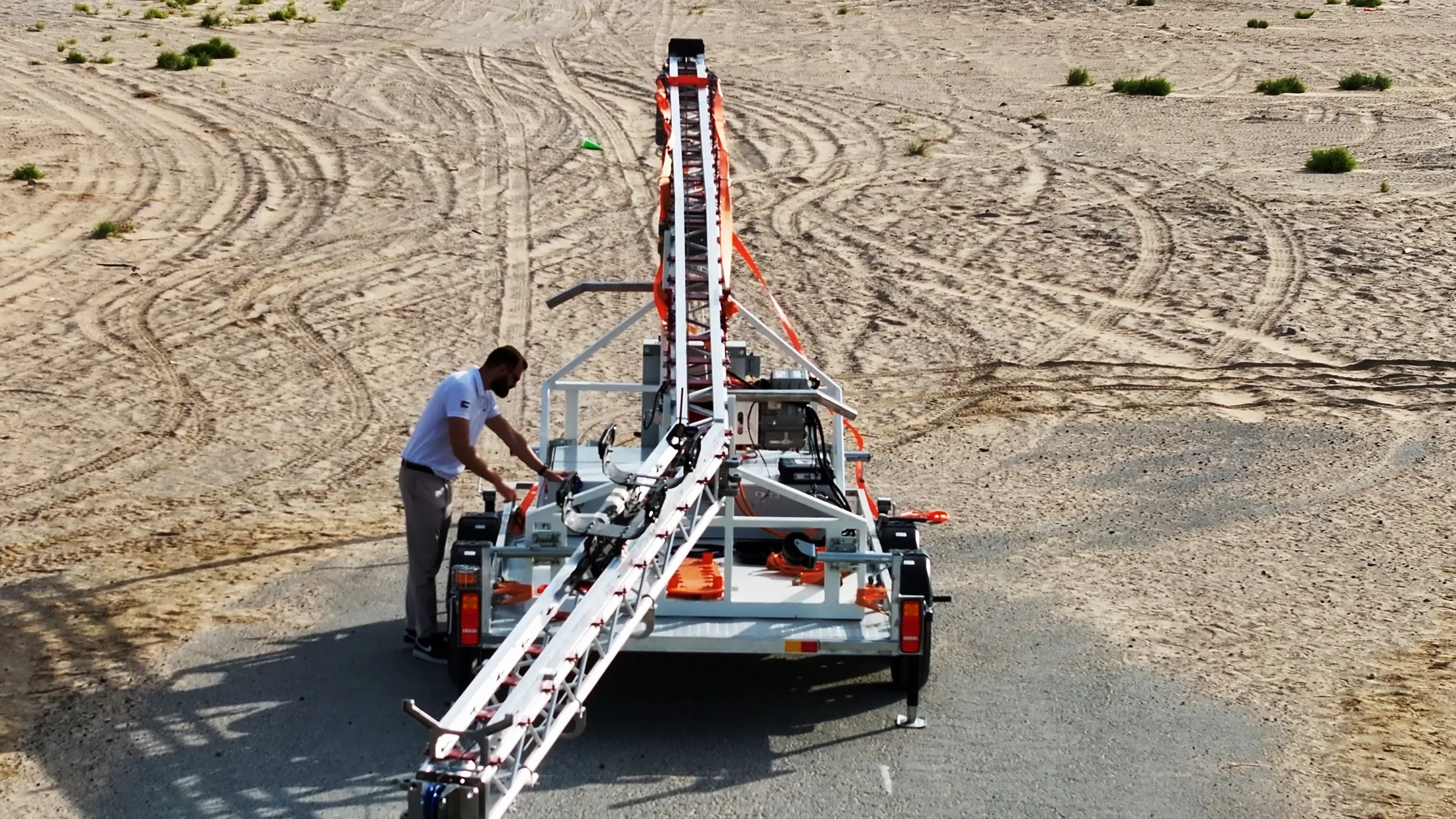

  • Length | 14 m / 5 m folded

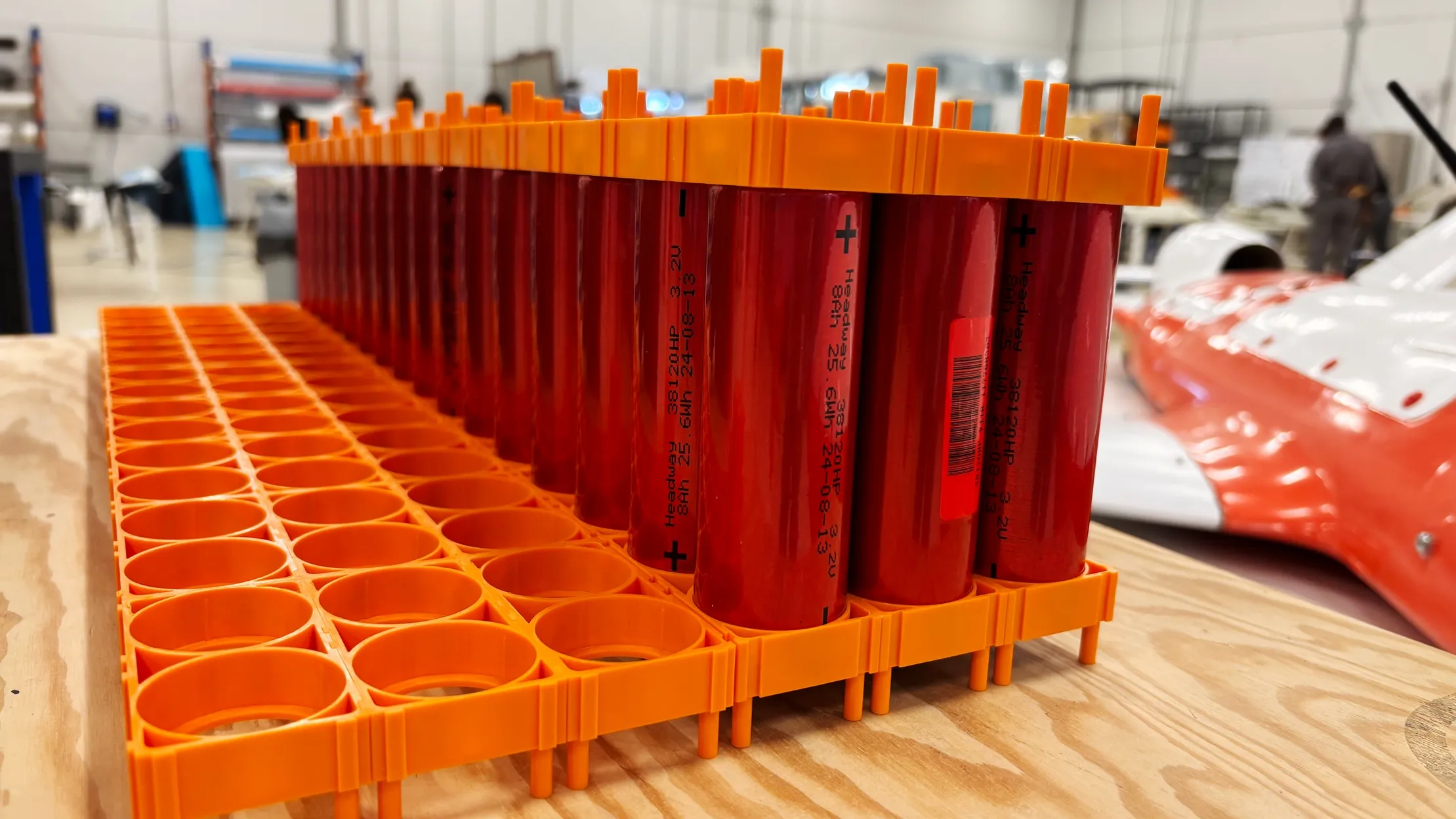

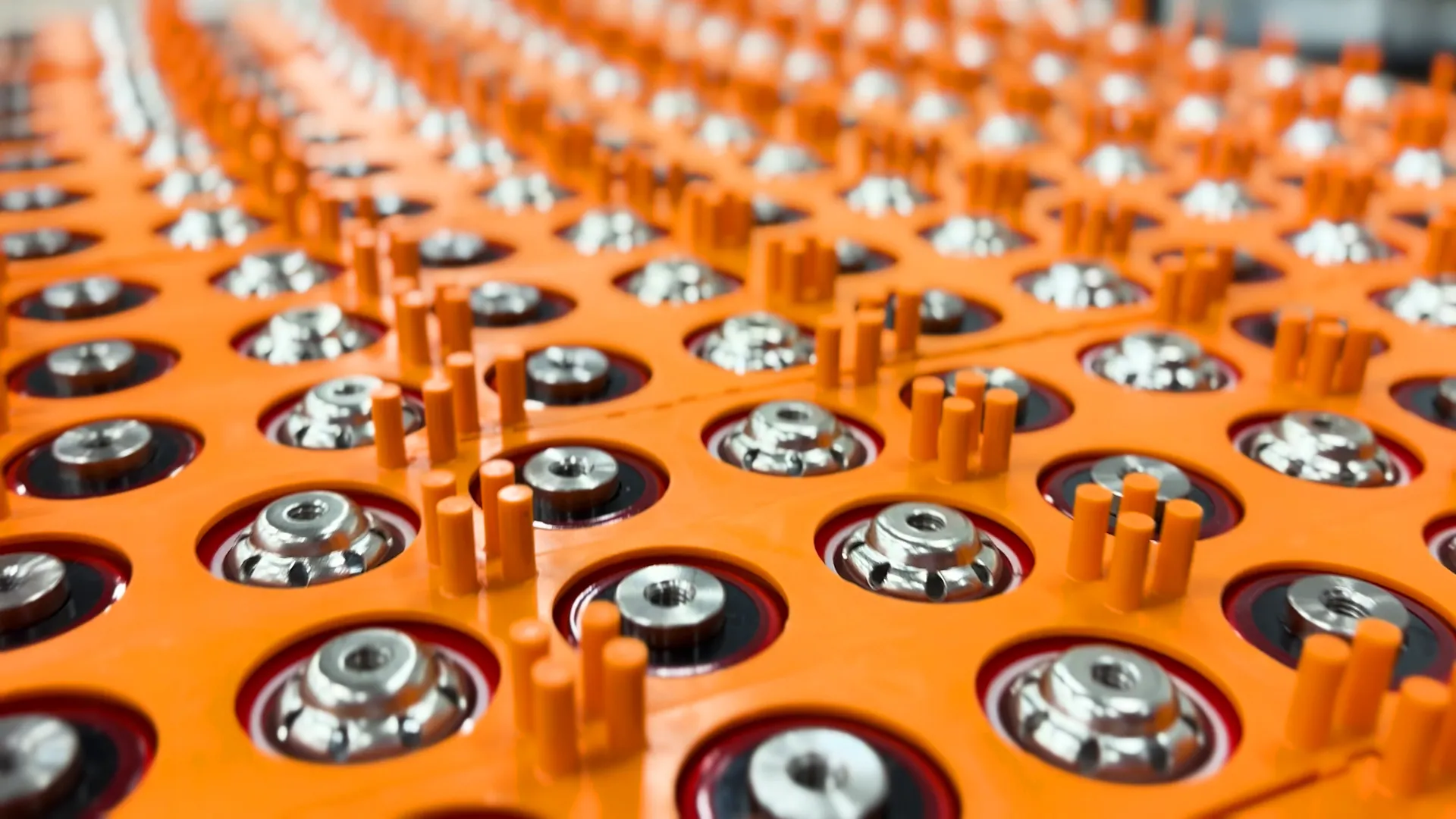

  • Battery | 400 V / 8 kWh
  • Generator | 6 kW

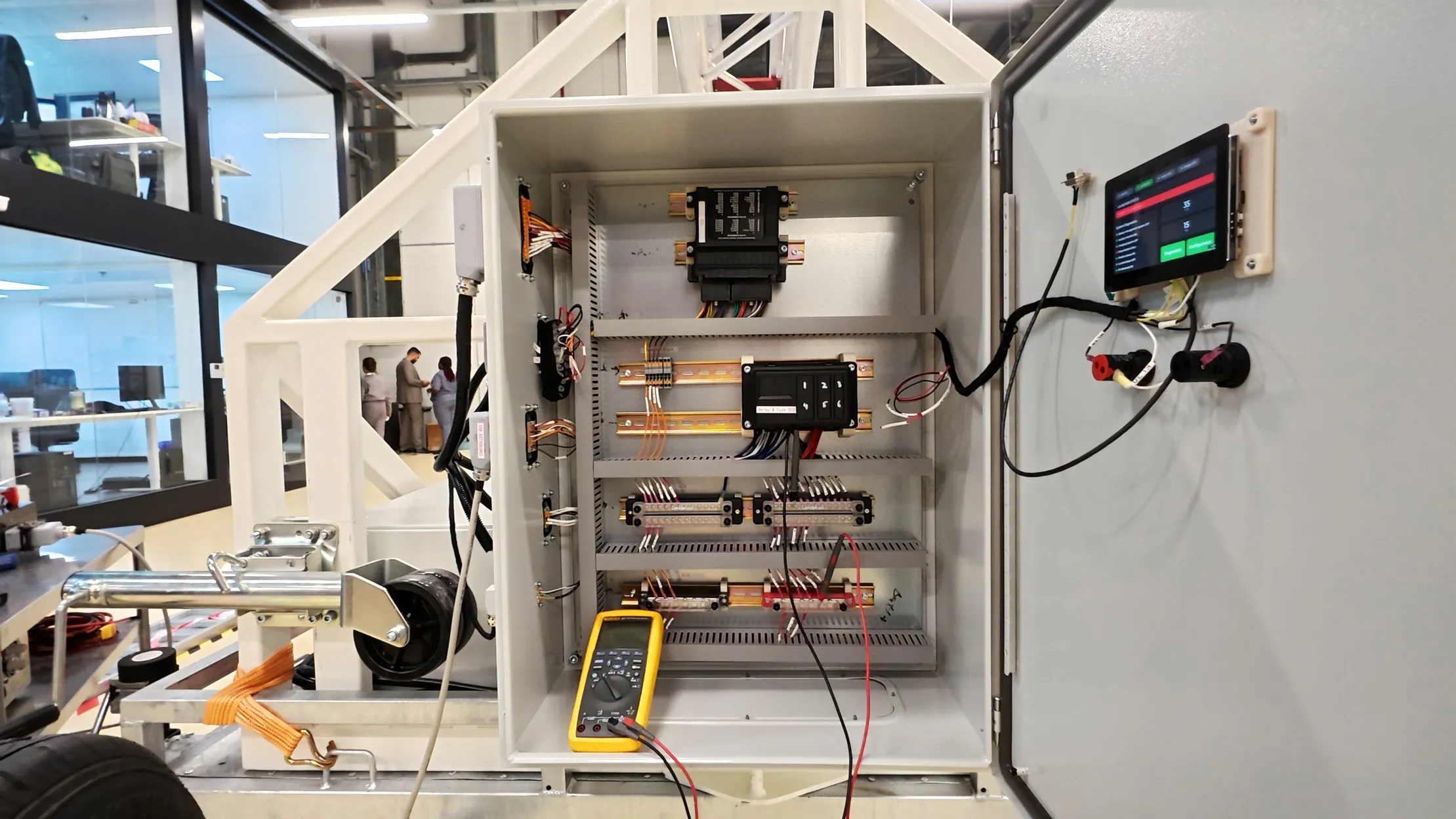

  • Cooling | Water-cooled battery, motor and controller
  • Launch cycle time | 60 sec
  • Launch cycles per charged battery | 200@max power

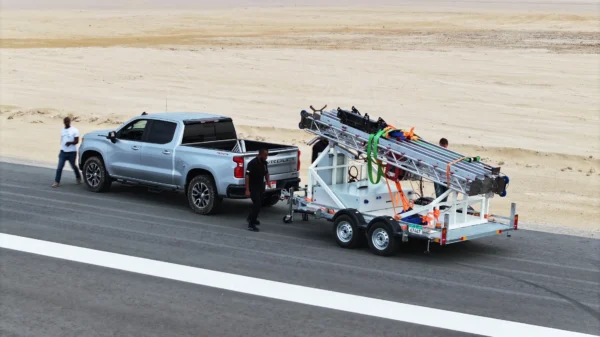

  • Towing speed | 120 km/h
